Pump Station Screen
The Ultimate Screen for Protection of Pump Stations
The HUBER ROK4 Pump Station Screen, available through Hydroflux Epco, is a reliable and efficient solution for protecting pump stations by preventing debris and solids from entering downstream infrastructure. Its compact, vertical design makes it ideal for confined spaces, while its automatic, low-maintenance operation ensures long-term performance and reduced operational costs. Hydroflux Epco’s expertise in wastewater treatment ensures the ROK4 is seamlessly integrated into municipal and industrial applications.
Features
The HUBER ROK4 Pump Station Screen, available through Hydroflux Epco, offers an advanced, all-in-one solution for pump station protection with efficient screening, lifting, and compaction in a single, compact unit. Its innovative design ensures reliable solids separation, preventing blockages and maintaining smooth, uninterrupted flow through the wastewater network.
Automatic Screening, Lifting, and Compaction:
The ROK4 combines multiple functions into one streamlined unit, automatically capturing, elevating, and compacting solids in a continuous, hands-free process. This integrated approach reduces manual handling, maintenance requirements, and operational costs.
Optimal Solids Retention with Two-Dimensional Screening
Utilising a perforated plate screen, the ROK4 achieves superior solids retention by capturing materials across two dimensions. This ensures efficient removal of rags, plastics, and other problematic debris, safeguarding downstream equipment and preventing costly damage.
Prevention of Clogging and Tressing
By effectively capturing and removing solids, the ROK4 mitigates the risk of clogging and tressing in pump stations and manholes. This proactive solids management reduces the likelihood of pump failures, enhancing system reliability.
Integrated Bottom Step for Sewer Deposit Prevention
The screen features an integrated bottom step, specifically designed to prevent sediment build-up at the sewer inlet. This feature supports optimal hydraulic performance and reduces the need for frequent cleaning.
Easy Installation in Existing Infrastructure

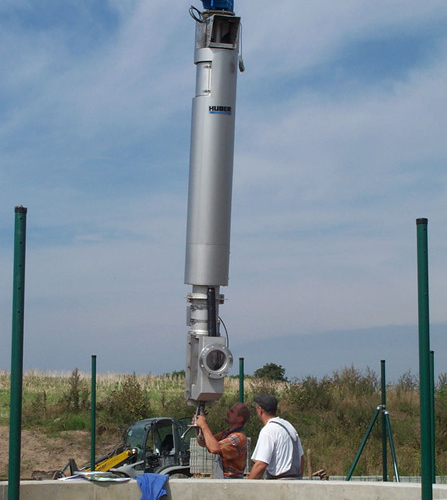

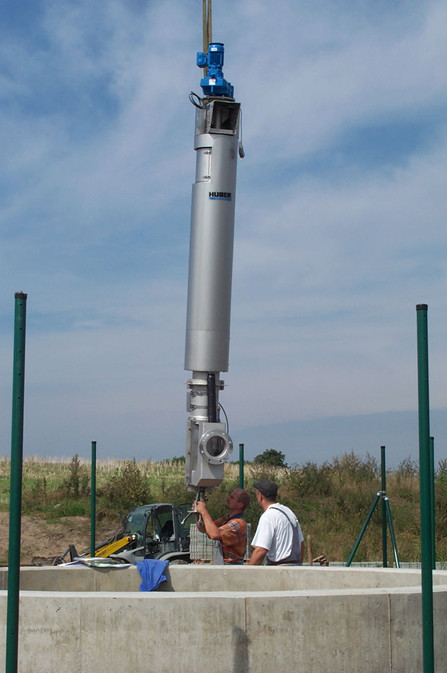

The ROK4 is designed for straightforward installation into new or existing pump stations without the need for extensive civil works. Its adaptable structure ensures compatibility with various applications.
Design, Function and Operation

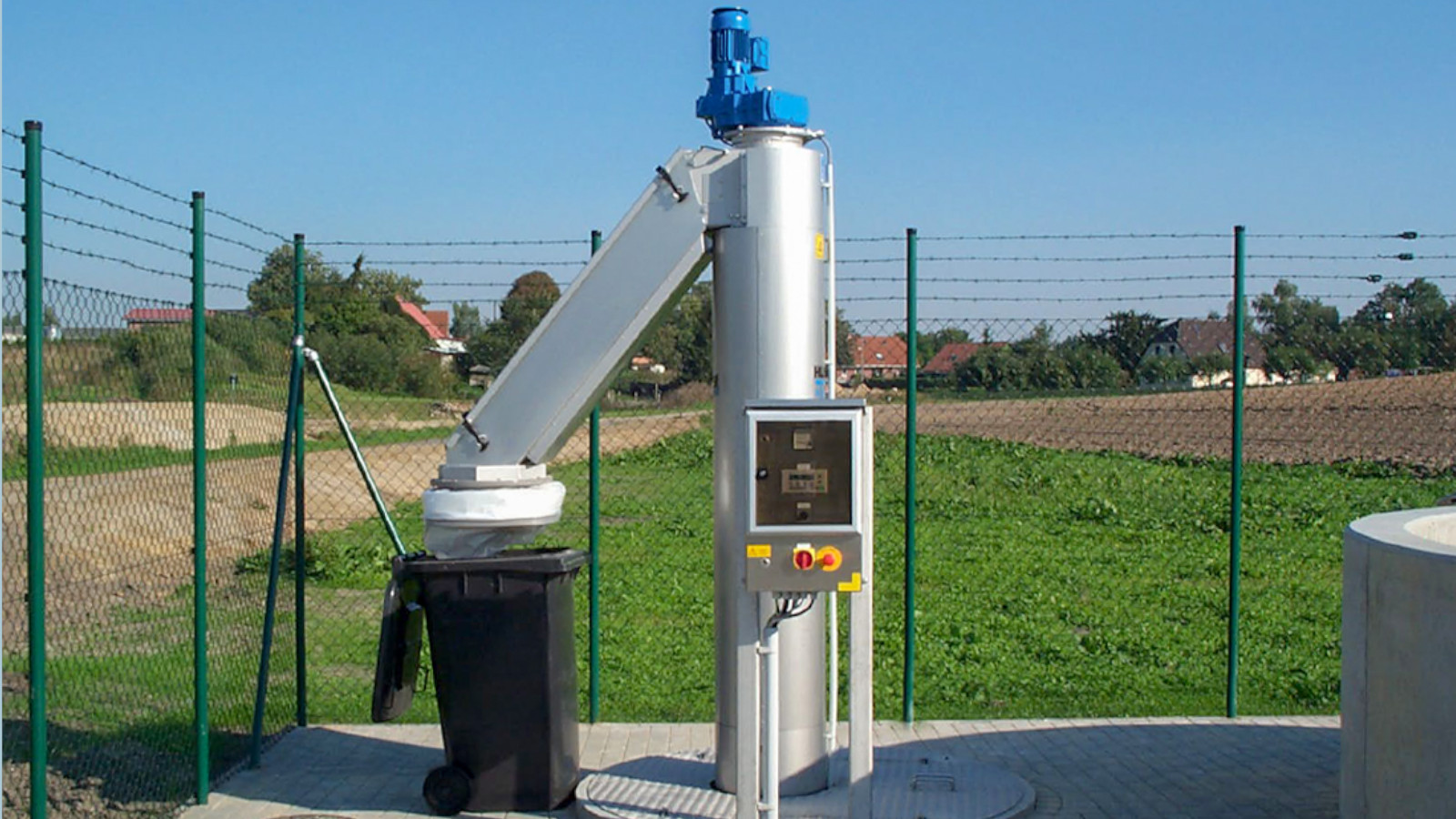

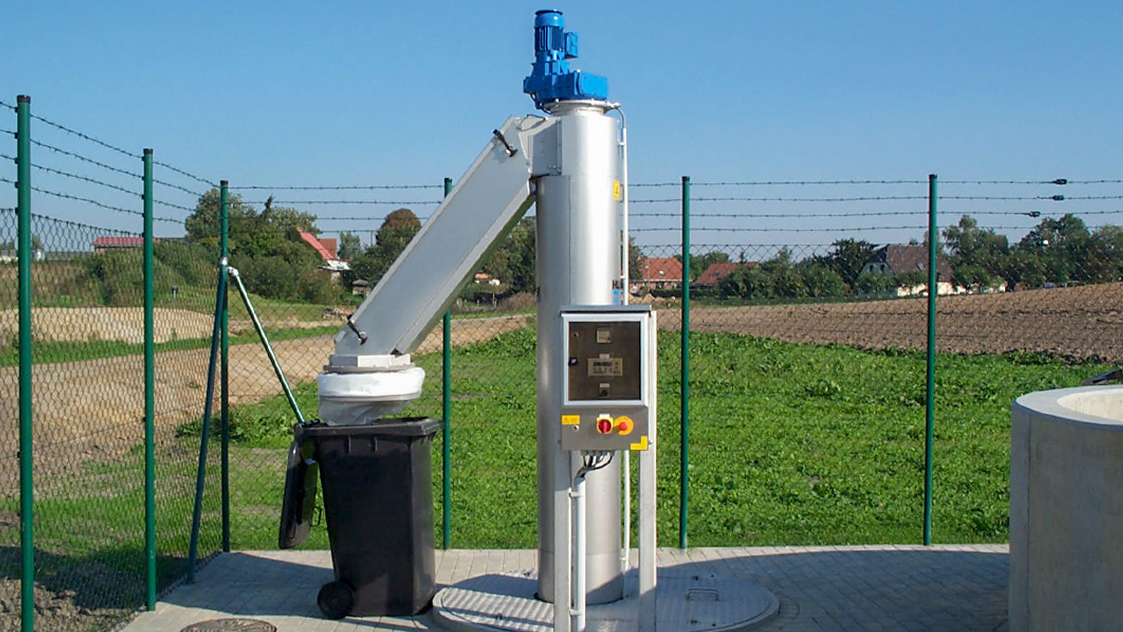

The HUBER Pump Station Screen ROTAMAT® RoK4, available through Hydroflux Epco, offers an efficient and reliable solution for both new installations and refurbishment projects. Unlike traditional screening systems that require manual cleaning, the RoK4 operates automatically, ensuring consistent, hands-free performance. The system vertically lifts, dewaters, and compacts screenings in a single process. The compacted screenings are then discharged into a container or endless bagging system, reducing odours and preventing pump failures caused by clogging.

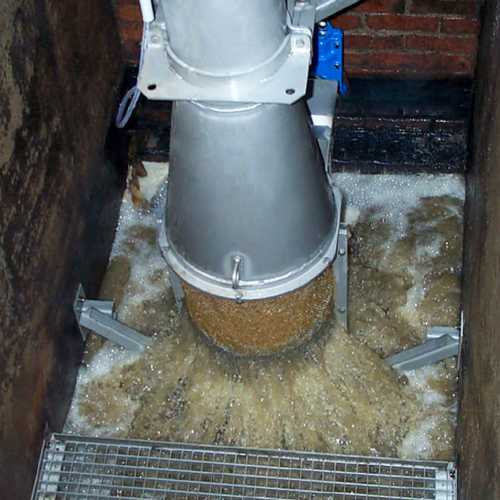

The RoK4 is designed with a vertical perforated screen basket and a shafted auger enclosed within a vertical tube. Wastewater enters the system through an inlet connection and flows into a chamber that directs it toward the screen basket. Inside the basket, the screw flights are fitted with wear-resistant brushes, ensuring effective, continuous cleaning of the screen surface. As solids are lifted by the auger, they are simultaneously dewatered and compacted before being discharged for convenient and hygienic disposal.
The screened wastewater is discharged by gravity or, if required, pumped to a higher level. The system also features a hose that returns the filtrate to the inlet chamber, maintaining efficient water flow.
To enhance operational resilience, the RoK4 includes an open-top inflow chamber, which acts as an emergency bypass in the event of high inflow or power failure. Additionally, the integrated bottom step prevents backflow into the sewer, reducing the risk of sediment accumulation and ensuring smooth, uninterrupted operation.
With its automated operation, efficient solids removal, and low-maintenance design, the HUBER ROTAMAT® RoK4 is a dependable and cost-effective solution for pump station protection.
Contact Hydroflux Epco for an initial technical discussion
Screening is a critical component of wastewater treatment, ensuring the efficient removal of solids to protect downstream processes and improve overall plant performance. Hydroflux Epco, with its extensive expertise and technical know-how, offers a comprehensive range of screening solutions designed to meet the needs of any municipality.
Our team of experts understands the complexities of screening processes and will always provide tailored advice on selecting, designing, and optimising the correct screening systems in each case.
Get in touch with Hydroflux Epco today to learn how we can help streamline your wastewater treatment operations with reliable, high-performance screening solutions.
HUBER RoK4 Pump Station Screen Brochure
Please download the HUBER RoK4 Pump Station Screen brochure here.
